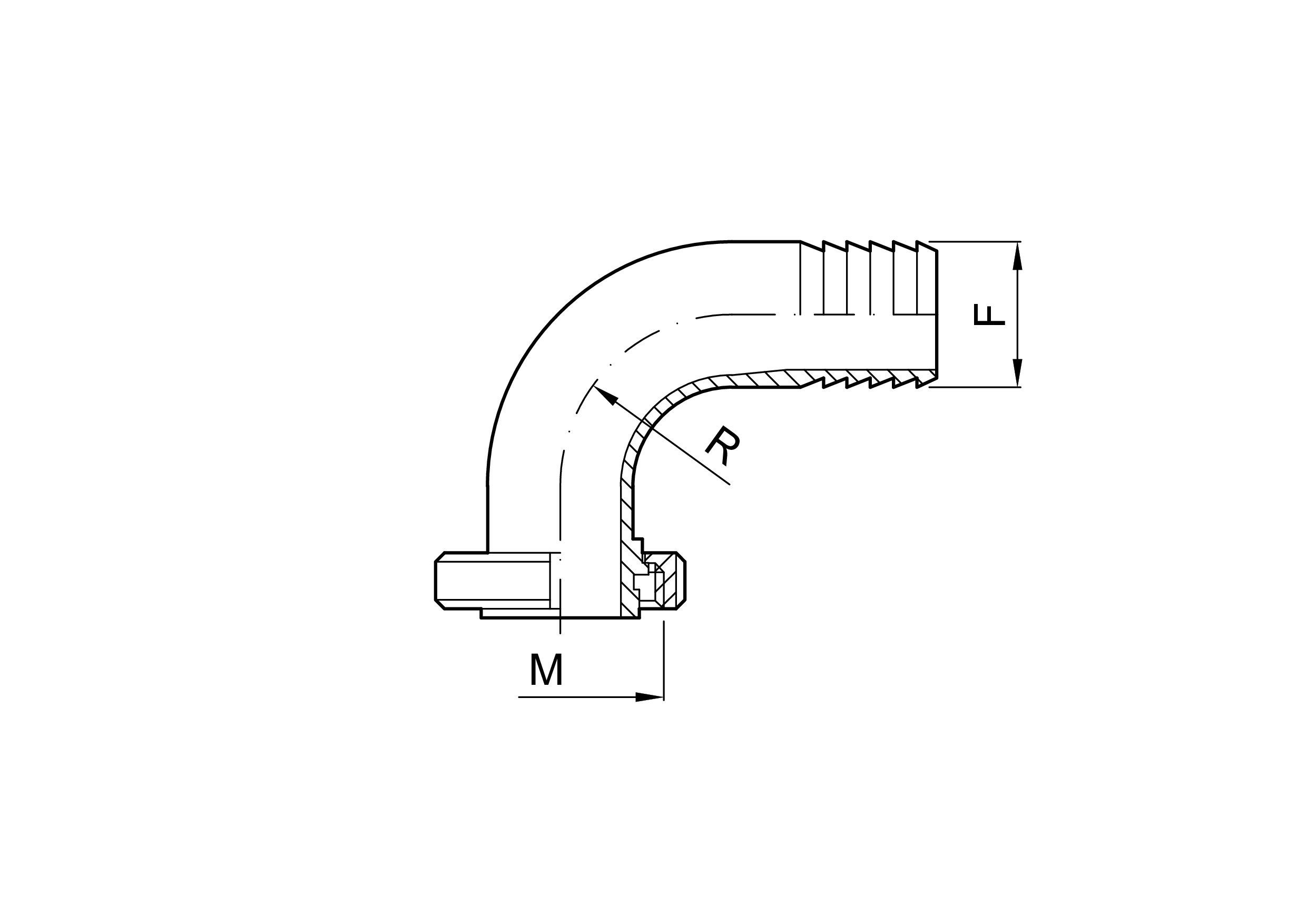

90° nut and lisse MACON-hose holder bend
Available variants and dimensions for this product
Main SKU: 4.460.PV. --
Identifies the general product type, regardless of size. Use this code for general technical or commercial inquiries.
The last letter present in each product code identifies its version: that is, the combination of materials used to construct it.
| codice | MACON | F | M |
|---|---|---|---|
| mm | mm | mm | |
| 4.460.PV.37-A | 40 | 43 | 55 |
| 4.460.PV.49-A | 50 | 53 | 67 |
| 4.460.PV.60-A | 60 | 63 | 79 |
| 4.460.PV.68-A | 70 | 73 | 89 |
| 4.460.PV.74-A | 80 | 83 | 102 |
| 4.460.PV.79-A | 100 | 103 | 125 |
