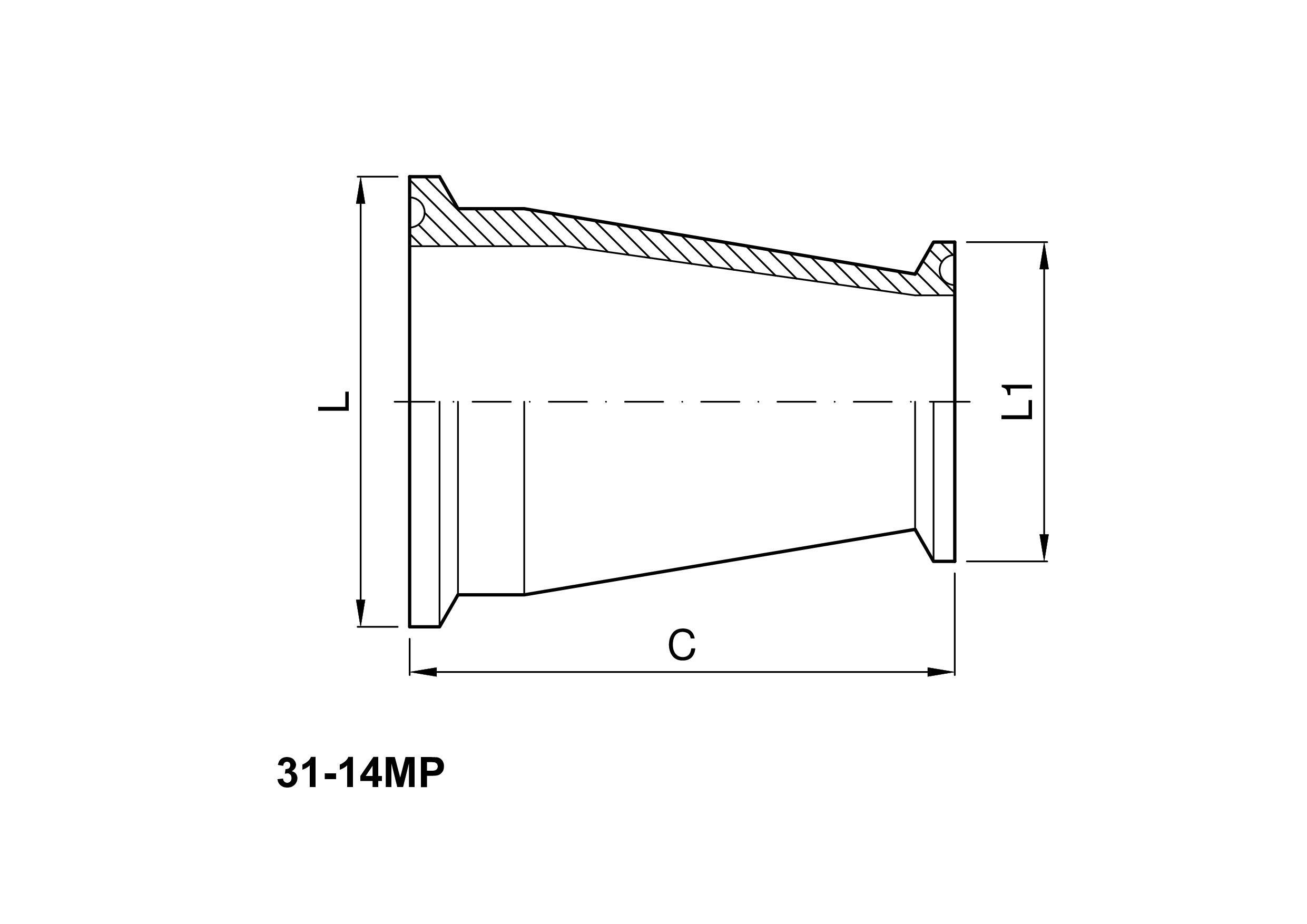

RIDUZIONE CONCENTRICA CON ATTACCHI CLAMP 3A (Ra < 0,5 µm)
Varianti e misure disponibili per questo prodotto
SKU principale: 4.31-.LL.--
Identifica il prodotto in senso generale, indipendentemente dalla misura. Utilizzabile per richieste tecniche o commerciali non specifiche
Ultima lettera presente in ogni codice prodotto ne identifica l'esecuzione: ovvero la combinazione di materiali in cui è costruita.
| codice | DN | DN1 | L | L1 | C | |
|---|---|---|---|---|---|---|
| inch | inch | mm | mm | mm | kg | |
| 4.311.LL.07-B | ¾ | ½ | 34 | 25,4 | 50,8 | 0,15 |
| 4.311.LL.11-B | 1 | ¾ | 50,4 | 25,4 | 50,8 | 0,25 |
| 4.311.LL.24-B | 1 ½ | 1 | 50,4 | 50,4 | 76,2 | 0,15 |
| 4.311.LL.44-B | 2 | 1 ½ | 64 | 50,4 | 76,2 | 0,25 |
| 4.311.LL.58-B | 2 ½ | 2 | 77,4 | 64 | 76,2 | 0,30 |
| 4.311.LL.70-B | 3 | 2 ½ | 90,9 | 77,4 | 76,2 | 0,40 |
| 4.311.LL.76-B | 4 | 3 | 118,8 | 90,9 | 130,1 | 0,80 |
| 4.312.LL.11-B | 1 | ½ | 50,4 | 25,4 | 76,2 | 0,25 |
| 4.312.LL.24-B | 1 ½ | ¾ | 50,4 | 25,4 | 101 | 0,15 |
| 4.312.LL.44-B | 2 | 1 | 64 | 50,4 | 127 | 0,25 |
| 4.312.LL.58-B | 2 ½ | 1 ½ | 77,4 | 50,4 | 127 | 0,30 |
| 4.312.LL.70-B | 3 | 2 | 90,9 | 64 | 127 | 0,40 |
| 4.312.LL.76-B | 4 | 2 ½ | 118,8 | 77,4 | 180,9 | 0,40 |
