FEMALE-FEMALE BSP complete union
Available variants and dimensions for this product
Main SKU: 4.030.AA. --
Identifies the general product type, regardless of size. Use this code for general technical or commercial inquiries.
The last letter present in each product code identifies its version: that is, the combination of materials used to construct it.

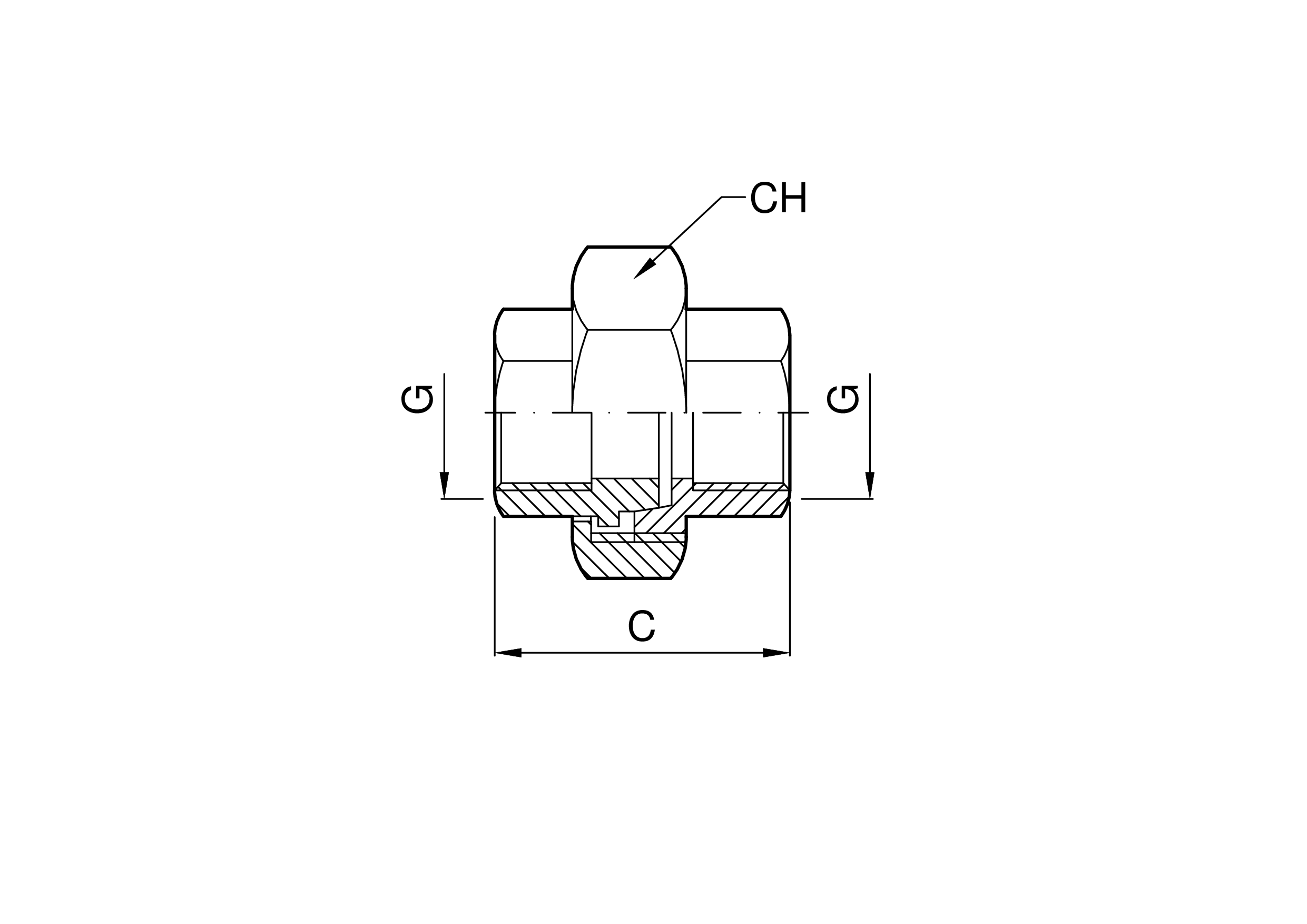

| codice | G | C | CH | |
|---|---|---|---|---|
| inch | mm | kg | ||
| 4.030.AA.04-Y | ¼ | 33,5 | 30,5 | 0,12 |
| 4.030.AA.05-Y | ⅜ | 36,5 | 34 | 0,16 |
| 4.030.AA.08-Y | ½ | 40 | 37 | 0,30 |
| 4.030.AA.10-Y | ¾ | 43 | 45,5 | 0,33 |
| 4.030.AA.13-Y | 1 | 50 | 52 | 0,40 |
| 4.030.AA.29-Y | 1 ¼ | 54 | 64,5 | 0,75 |
| 4.030.AA.38-Y | 1 ½ | 58 | 71 | 0,87 |
| 4.030.AA.50-Y | 2 | 65 | 86 | 1,25 |
| 4.030.AA.65-Y | 2 ½ | |||
| 4.030.AA.71-Y | 3 |
