DIN MALE part hose holder
Available variants and dimensions for this product
Main SKU: 4.240.DV. --
Identifies the general product type, regardless of size. Use this code for general technical or commercial inquiries.
The last letter present in each product code identifies its version: that is, the combination of materials used to construct it.

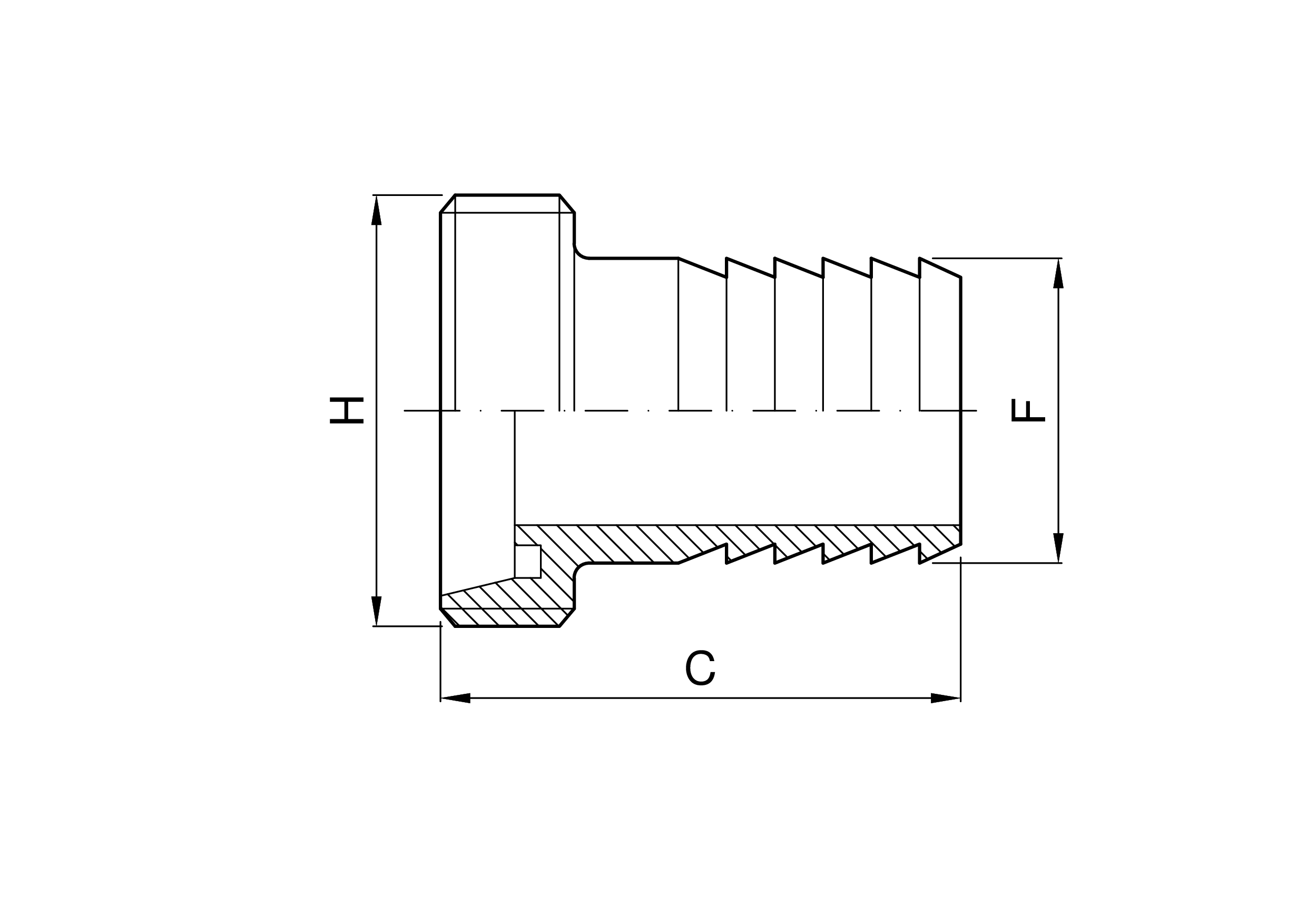

| codice | DIN | F | H | C | |
|---|---|---|---|---|---|
| mm | mm | mm | mm | kg | |
| 4.240.DV.09-A | 20 | 25 | 44 | 72 | 0,18 |
| 4.240.DV.12-A | 25 | 30 | 52 | 79 | 0,20 |
| 4.240.DV.23-A | 32 | 35 | 58 | 89 | 0,28 |
| 4.240.DV.32-A | 40 | 40 | 65 | 93 | 0,35 |
| 4.240.DV.45-A | 50 | 50 | 78 | 100 | 0,50 |
| 4.240.DV.51-A | 60 | 60 | 85 | 110 | 2,00 |
| 4.240.DV.66-A | 65 | 70 | 95 | 117 | 0,75 |
| 4.240.DV.72-A | 80 | 80 | 110 | 125 | 1,20 |
| 4.240.DV.77-A | 100 | 100 | 130 | 140 | 2,00 |
